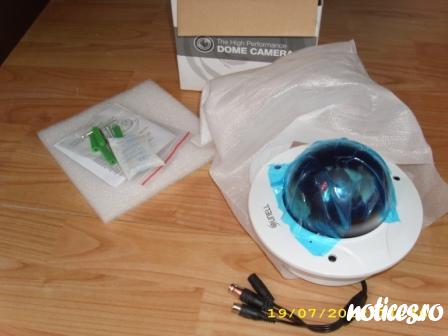

Camera Doom Satell de interior

Descriere

Camera Doom Satell de interior

FEATURES
- Accept 12vdc power supply
- Automatic back-light compensation improves the image quality
- Auto-IRIS controlled by electronic system
- Automatic White Balance function and Automatic Gain Control function
- The camera is equipped with a standard CS-mount or fixed boards lens
- Universal Power lead Plug


SPECIFICATIONS
· Signal System – PAL/NTSC system
· Image Sensor – 1/3 * Sony CCD
· No of Effective Pixels (HXV) – PAL:500X582(V), NTSC:510X494(V)
· Resolution – 420 TVL

· Minimum Illumination – 0.3LuX/F2.0
· Shutter Speed – 1/50-1/100,000SEC(PAL),1/60~1/100,000(NTSC)
· S/N – 48dB
· Gamma – 0.45
· White Balance – automatic
· AGC/BLC – ON/OFF
· Output – 1.0Vp-p, 75 Composite
· Audio Output – Optional
· Power Supply DC12V Regulated (or 12vdc/24VAC Optional)
· Consumed Current – 110 A(max)
· Opration Temperature – - 10 GRADE, +50GRADE, RH95% MAX
· Dimension – 160mm x 114mm
· Weight – 450g
